ES2-in-1 single-phase microinverter | HMS-600/700/800/900/1000-2T & FLEX Accessories Installation

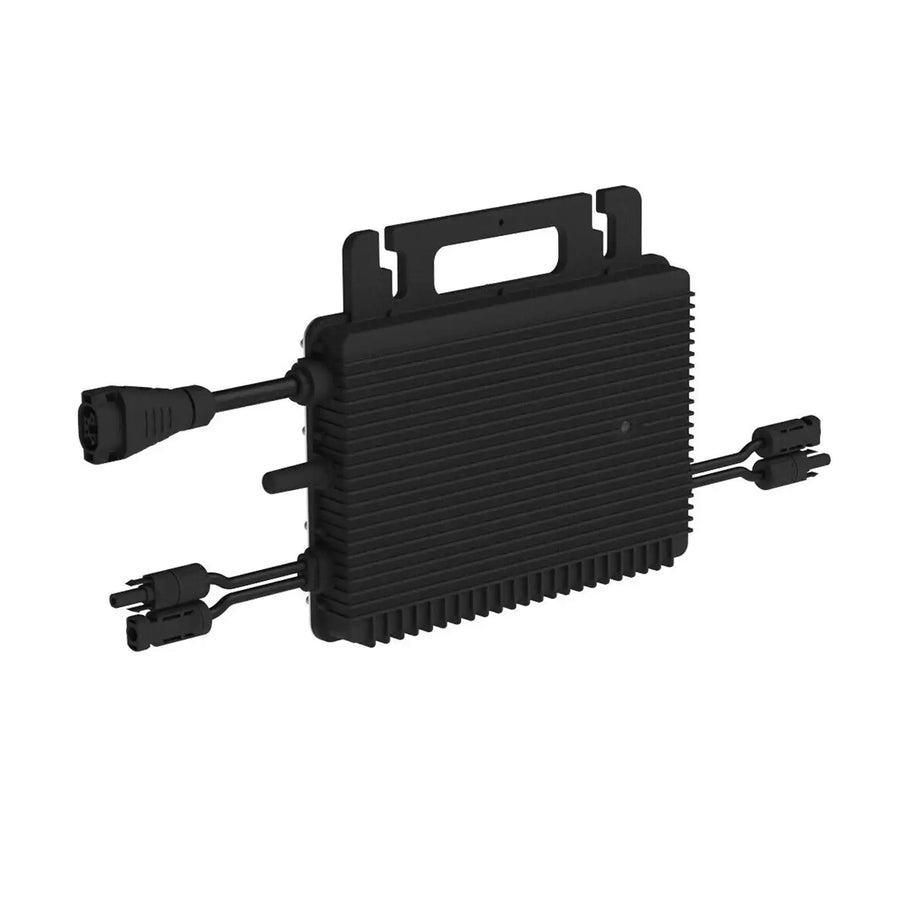

Hoymiles HMS-600/700/800/900/1000-2T Micro Inverter Specification
(Values in order of the models)
GENERAL
Dimension:
Protection class:
Weight including cable:
Number of MPPTs:
Rated output power:
Dimension:
Protection class:
Weight including cable:
Number of MPPTs:
Rated output power:
Rated output current：
MPPT nominal efficiency:
261 × 180 × 35,1 mm
IP67K
3,2 kg
2
600 / 700 / 800 / 900 / 1000 VA
2,61 / 3,04 / 3,48 / 3,91 / 4,35A
99,8%
MPPT voltage range:
starting voltage:
Maximum input voltage:
Maximum input current:Ambient temperature range：
Storage temperature range：
16-60 V
22 V
60 / 60 / 65 / 65 / 65 V
2×12 / 2×13 / 2×14 / 2×15 / 2×16 A
-40 to +65 °C
-40 to +85 °C
storage and balcony power plant
Hoymiles HMS-2T Micro-Inverters Q&A
What is the Hoymiles HMS-600/700/800/900/1000-2T series?
The HMS-600/700/800/900/1000-2T series comprises high-performance micro-inverters specifically designed for balcony power plants and small PV systems, enabling the connection of two solar modules.
For which applications are these micro-inverters suitable? For how many solar modules are these micro-inverters suitable?
All models in the 2T series have 2 independent MPPT inputs and are designed to connect up to two solar modules.
What are the advantages of MPPT technology?
The integrated MPPT technology ensures optimal energy yield by minimizing power losses due to shading, dust, or aging.
What is the power output of the HMS-2T series?
Depending on the model, the nominal output power ranges between 600 and 1000 VA, making it suitable for PV systems of varying power outputs.
What security features are integrated?
The micro-inverters feature integrated protection functions, a rapid shutdown feature, and a galvanically isolated transformer for safe operation.
Is the installation complicated?
No, thanks to the plug-and-play design, the devices can be installed quickly and easily directly on the PV module or mounting system.
How is the monitoring and installation carried out?
Monitoring is done via the S-Miles app or cloud. A DTU Lite-S or DTU Pro-S is required for this, and settings can also be configured via this device.
